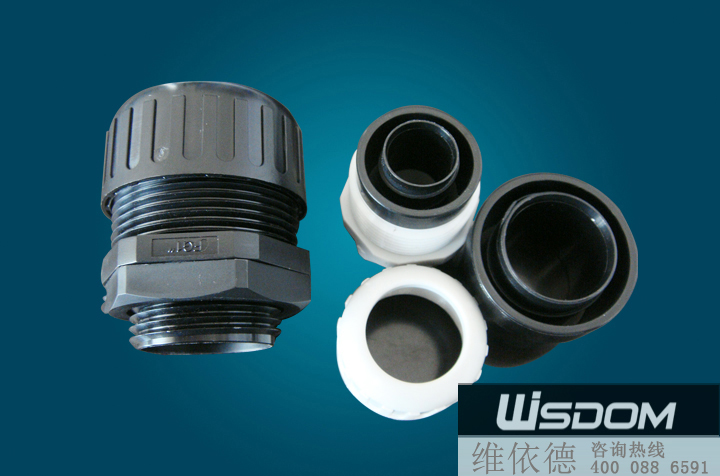

·螺牙規格: 公制牙 ( Metric )、G(PF / BSP / PS)牙及PG牙。
·產品材質: UL 認可之尼龍PA66 制成 ( 防火等級 UL 94V-2 )。
·顏色種類: 黑色及灰色。
·工作溫度: 靜態-40℃至100℃,或瞬間可耐熱至120

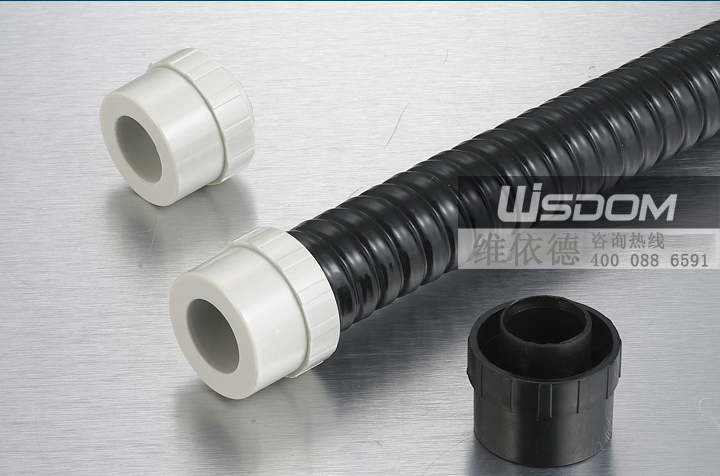

·適用范圍: 可結合自 5/16" 到 2" 之被覆金屬蛇管規格使用。
產品規格
適配金屬軟管 Accommodated Pipes | 編號 Item No | 螺牙規格 | 螺紋外徑 | 螺紋長度 Thread Length | 包裝 Std Pk |
5/16”管 | M16-AD15.8-ST | M16 x 1.5 | 16 | 10 | 50 |
M16-AD15.8 | M16 x 1.5 | 16 | 15 | 50 | |
3/8”管 | M16-AD15.8-ST | M16 x 1.5 | 16 | 10 | 50 |
M16-AD15.8 | M16 x 1.5 | 16 | 15 | 50 | |
1/2”管 | M20-AD21.2-ST | M20 x 1.5 | 20 | 10 | 50 |
M20-AD21.2 | M20 x 1.5 | 20 | 15 | 50 | |
3/4”管 | M25-AD26.2-ST | M25 x 1.5 | 25 | 10 | 50 |
M25-AD26.2 | M25 x 1.5 | 25 | 15 | 50 | |
1”管 | M32-AD34.5-ST | M32 x 1.5 | 32 | 10 | 20 |
M32-34.5 | M32 x 1.5 | 32 | 15 | 20 | |
| 1 1/4”管 | M40-AD42.5 | M40 x 1.5 | 40 | 15 | 10 |
| 1 1/2”管 | M50-AD48 | M50 x 1.5 | 50 | 15 | 10 |
| 2”管 | M63-AD54.5 | M63x 1.5 | 63 | 25 | 10 |
| 適配金屬軟管 Accommodated Pipes | 編號 Item No | 螺牙規格 | 螺紋外徑 | 螺紋長度 Thread Length | 包裝 Std Pk |
5/16”管 | PG16-15.8 | PG16 | 22.5 | 10.8 | 50 |
3/8”管 | PG16-15.8 | PG16 | 22.5 | 10.8 | 50 |
1/2”管 | PG16-21.2 | PG16 | 22.5 | 13 | 50 |
3/4”管 | PG21-28.5 | PG21 | 28.3 | 13 | 50 |
1”管 | PG29-34.5 | PG29 | 37 | 13 | 20 |
| 適配金屬軟管 Accommodated Pipes | 編號 Item No | 螺牙規格 | 螺紋外徑 | 螺紋長度 Thread Length | 包裝 Std Pk |
5/16”管 | PF1/2-15.8 | G(PF)1/2 | 20.9 | 15 | 50 |
3/8”管 | PF1/2-18.5 | G(PF)1/2 | 20.9 | 15 | 50 |
1/2”管 | PF1/2-21.2 | G(PF)1/2 | 20.9 | 15 | 50 |
3/4”管 | PF3/4-28.5 | G(PF)3/4 | 26.4 | 15 | 50 |
1”管 | PF1-34.5 | G(PF)1 | 33.2 | 15 | 20 |
1 1/4”管 | PF1 1/4-42.5 | G(PF)1 1/4 | 41.9 | 15 | 10 |
1 1/2”管 | PF1 1/2-48 | G(PF)1 1/2 | 48 | 15 | 10 |
2”管 | PF2-54.5 | G(PF)2 | 60 | 15 | 10 |
